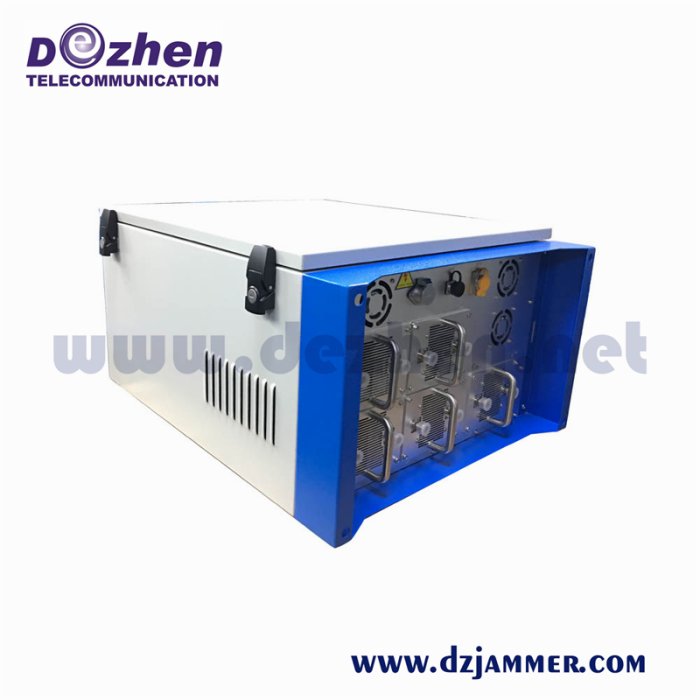

Military Units High Power Cell Phone Jammer For Blocking GSM CDMA 3G 4G WIFI VHF UHF
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Waterproof Outdoor Signal Jammer |
| Channel Number | 10 |
| Each Bands Power | 10-20W |
| Total Output Power | 100-150W |
| Jamming Range | 50-500m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Product Description:
This 1000W waterproof OEM signal jammer is really powerful and can allow you to choose four or five jamming frequency bands among the following frequency bands CDMA, GSM, DCS, PCS, 3G, WiFi, GPSL1, 4G LTE, 4G Wimax, and CDMA UHF VHF, in this case people can just tell the jamming frequency bands they want.
Thus you can also turn on or turn off the frequency bands according to the real needs as well without affect the jamming functions of other frequency bands at the same time for this OEM signal jammer with Omni-directional Antennas.
With good cooling fan system and waterproof design has also been used on this 1000W waterproof OEM signal jammer as well so that it can easily work outside and also and owning the VSWR circuit protection to ensure system will not burn out should there be antenna short circuiting or disconnection is a merit of this 1000W waterproof OEM signal jammer. With such kind of excellent design, for places such as the meeting rooms, prison, museums, training centers, factories and more this high power OEM signal blocker can be widely used. To know more details just come here and seize the chance here.
At a Glance:
- Total 1000W High Power
- Each band can work independently
- Each bands is adjustable
- Housing Waterproof & shockproof design suitable indoor or outdoor use
Specification
Affected Frequency Ranges: (10bands option)
| Output Interface | Output Frequency | Output power |
| CH1 | CDMA 800: 850 to 894MHz | 10-20w |
| CH2 | GSM 900: 925 to 960MHz | 10-20w |
| CH3 | GSM 1800: 1805 to 1880MHz (DCS) | 10-20w |
| CH4 | GSM 1900: 1920 to 1990MHz (PCS) | 10-20w |
| CH5 | 3G: 2110 to 2170MHz | 10-20w |
| CH6 | 4G LTE: (USA:725-770MHz) or (Europe:790-826MHz) | 10-20w |
| CH7 | 4G Wimax: (USA:2345-2400MHz) or (Europe:2620-2690MHz) | 10-20w |
| CH8 | WiFi: 2400-2500MHz | 10-20w |
| CH9 | VHF: 136-174MHz | 10-20w |
| CH10 | UHF: 400-470MHz | 10-20w |
| Total RF Power | 500~1000W | |
| Power supply | AC220V | |
| Shielding area | 50-1000m @ according to signal density of mobile network | |
| Jammer Module Number | 10 | |
| Power consumption | 1000W | |
| Weight | 30.00 Kg | |
| Size (length x wind x high) | 420x130x480mm | |
| Humidity | 30%-95% | |
| Running Temperature | -20 to +55 Celsius Degree | |
| Battery Working Time (Option) | 2 or 3 hours | |
Accessories
- High Power Cell Phone Signal Jammer
- Antennas
- Power cable
Monitor software function: (Option)
Remote control switches of each machine.
Remote viewing each machine working state.
The power output of each machine remote adjustment.
Remote viewing offline log of each machine.
Mail receiving each machine working state.
The system can set permissions to log on.
Terms and conditions:
| Delivery Time Schedule | Delivery time is 1 or 2 months, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
