Product Description:
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Waterproof Outdoor Signal Jammer |
| Channel Number | 12 |
| Each Bands Power | 50W |
| Total Output Power | 600W |
| Jamming Range | 25-300m |
| Application | Military Units, Prison, Police, Bomb Disposal |

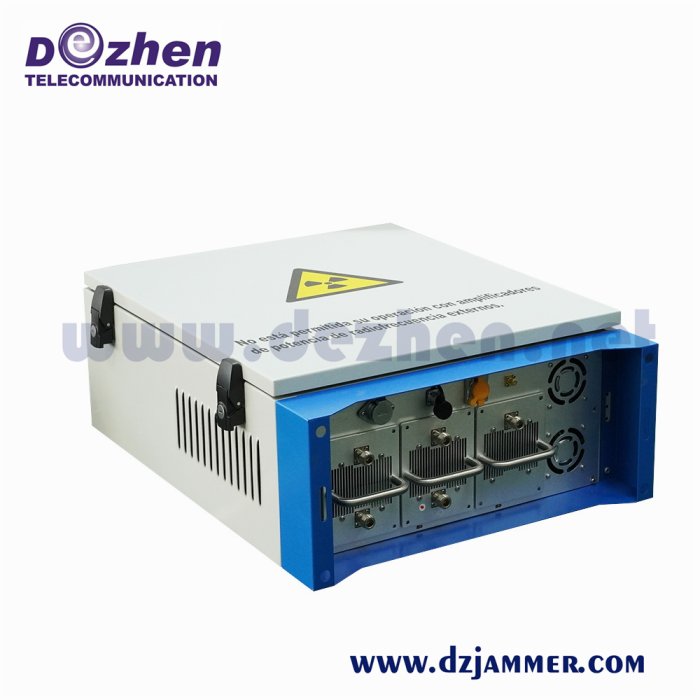

12 Bands Durable Military VIP Protection Security Cell Phone Signal Waterproof Outdoor Jammer
Product Description:
This jammer is a waterproof model. Using high quality waterproof case, ensure stability of the equipment ,even work in bad weather conditions.

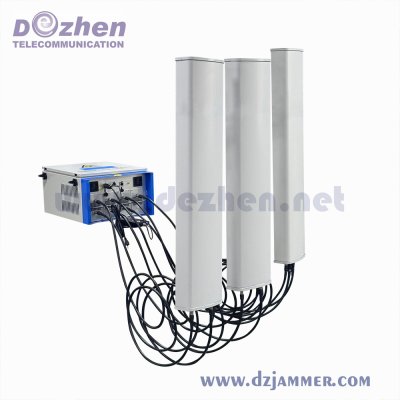

Equipped with special high gain directional planar antenna or fiberglass omni-directional whip antenna, the jammer can effective block CDMA/GSM/DCS /3G/ LTE/WIMAX / Wifi /GPS.
Use the overseas advanced chip and technology . With independent modular design, it keeps high operation efficiency, and avoid mutual interference.
100 watts per band, total RF power 600 watts, also with power adjustable switches to
control the radius range. It is suitable for prisons, detention houses, military bases, large oil fields and all other outdoor places where need the signal to block.
Monitor software function: (Option)
Remote control switches of each machine.
Remote viewing each machine working state.
The power output of each machine remote adjustment.
Remote viewing offline log of each machine.
Mail receiving each machine working state.
The system can set permissions to log on.
Specification:
Affected Frequency Ranges: (12bands option)
| Output Interface | Output Frequency | RF Output watt |
| CH1 | 20-80mhz | 100W |
| CH2 | 80-200MHz | 100w |
| CH3 | 200-500MHz | 100w |
| CH4 | 500-1000MHz | 50w |
| CH5 | 1000-1500MHz | 50w |
| CH6 | 1500-2000MHz | 50w |
| CH7 | 2000-2500MHz | 50w |
| CH8 | 2500-3000MHz | 50w |
| CH9 | 850-960MHz | 50w |
| CH10 | 1805-1880MHz | 50w |
| CH11 | 1880-1990MHz | 50w |
| CH12 | 2010-2125MHz | 50w |
| Total output power | 600~1200W | |
| Jamming range | up to 500m,still depends on the strength signal in given area | |
| Jammer Module Number | 12 | |
| External double channel directional panel antennas | all the TX frequency covered down link only | |
| Power supply | 50 to 60Hz, 100 to 240V AC | |
| With AC adapter | (AC100-240V-DC27V) | |
| Dimension | 420×480×130 mm | |
| Design | Customized Jammer | |
| HS Code | 8543709200 | |
| Packing | Neutral Packing | |
We could supply customized service by your detail requirements about frequencies setting. All 6-12
Frequency modules we can mix very flexibly.
| CDMA 800: | 851-894MHz |
| GSM 900: | 925-960MHz |
| DCS 1800: | 1800-1880MHz |
| PHS 1900: | 1920-1990MHz |
| 3G 2100(UMTS): | 2110-2170MHz |
| WIFI 2.4G Bluetooth: | 2400-2500MHz |
| WiFi3.6G: | 3500-3600MHz |
| Wi-Fi5.2G: | 5100-5500MHz |
| WIFI 5.8G | 5725-5850MHz |
| 4G/LTE 700M: | 725-770MHz(US) |
| 4G/LTE 800M: | 790-826MHz(EU) |
| 4G Wimax: | 2300-2400MHz(US) |
| 4G Wimax: | 2620-2690MHz(EU) |
| GPS/L1: | 1500-1600MHz |
| GPS/L2: | 1200-1300MHz |
| GPS/L3: | 1300-1400MHz |
| GPS/L4: | 1100-1200MHz |
| VHF: | 135-174MHz |
| UHF: | 400-470MHz |
| Lojack: | 167-175MHz |
| RF315: | 315MHz |
| RF433: | 433MHz |
| RF868: | 868MHz |
Application
Anti-terror units, bomb squads, VIP protection, protection of convoys, Military forces, SWAT teams, police forces, anti-drug units, riot control units
Accessories
- High Power Cell Phone Signal Jammer
- Antennas
- Power cable
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
