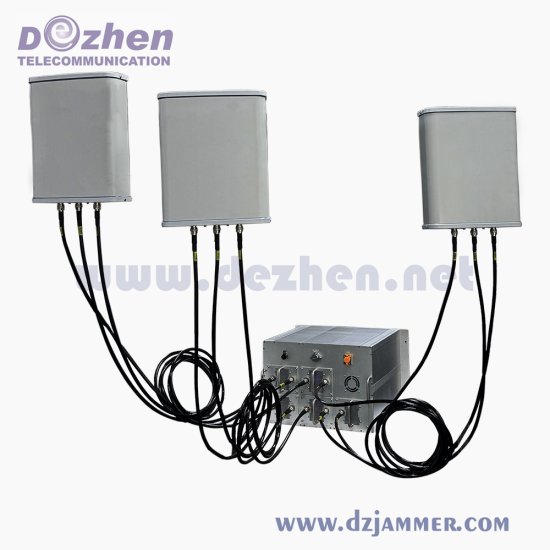

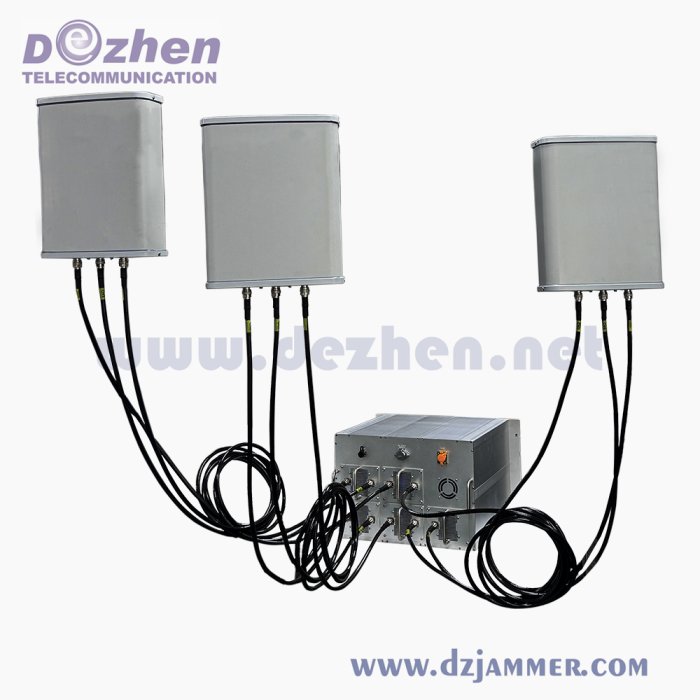

Military VIP Protection Defence Vehicle Bomb Jammer High Power Portable All Cell Phone Signal Jammer
Product description :
Because of the variety of jamming targets and a wide range of uncertainties, we have adopted the more advanced and effective jamming signal modulation method, which will increase the jamming efficiency in each band, so that to provide se curity protection and ensure the safety of VVIPs.
The equipment a vehicle-mounted high power jammer designed for blocking remote controlled improvised explosive devices(RCIED) used by terrorist.
The equipment use advanced technology max jamming signal, to prevent the bomb detonated.
The equipment of the protective radius depends on several conditions, such as transmitting frequency and output power, to the receiver(Bomb) distance, obstacles ect.
Features:
1.Different frequency bands can be controlled independently by different switches;
2.AC or DC power supply can be selected;
3.Power Amplifiers protection design ensures the working reliabity of the device.
4. Jammer up to five different jamming modules simultaneously,and cover up to 10 different frequency bands.
5. Each module with LED display to show its working frequency ,output power and etc.
6. Equipped with a remote control unit. The operator can ON/OFF each module through the wired remote controller.
Technical Specifications:
11 bands for option: The frequencies can be from 20-6000MHZ
| Output Interface | Frequency Range | Out Power | RF Output dBm |
| CH1 | 20-108MHz | Wireless ,FM Radio | 100W |
| CH2 | 135-174MHz | Wilkie-talkie(VHF) | 100W |
| CH3 | 300-400MHz | Remote Control, Drone | 100W |
| CH4 | 400-470MHz | Wilkie-talkie(UHF),Car alarm | 100W |
| CH5 | 851-894MHz | CDMA | 100W |
| CH6 | 925-960MHz | GSM | 100W |
| CH7 | 1570-1580MHz | GPSL1 | 50W |
| CH8 | 1805-1920MHz | DCS,PCS | 100W |
| CH9 | 2110-2170MHz | WCDMA | 50W |
| CH10 | 2400-2485MHz | WIFI,Drone,Bluetooth | 50W |
| CH11 | 5725-5850MHz | WIFI,Drone | 15W |
| Jamming Radius: | 50-800M, the jamming radius still depends on the strength signal in given area | ||
| HS Code: | 8543709200 | ||
| Total output power: | 600~1200W | ||
| Power Consumption: | 330W | ||
| Dimension: | 640×540×550 mm | ||
| Packing: | Neutral Packing | ||
| Signal Jammer for: | 20 - 6000MHz Cell Phone Signal Jammer | ||
| Power supply: | AC110 240V | ||
| Weight: | 75 Kg | ||
| Humidity: | 5%-95% | ||
| Working Temp: | -20℃ to +55℃ | ||
RF Characteristics:
| RF Characteristics | Description |
| Output Power | 915 Watts |
| Internal Modulation | FM Hopping Frequency |
| Signal Source | VCO Synthesized |
| Power Supply | AC110-240V,24V or 48V DC |
| Modules Per Unit | 11 |
| Contol | ON/OFF with Switch |
| Monitoring | Adjusted output power by DIP switch |
| Antenna | External- Omni-directional for 360° |
| Power Amplifier Protectors | Full VSWR Protector |
| Operating Hours | Unlimited |
Applicable Area:
• Reform-through-labour teams, conference rooms, movie theaters, churches, libraries, school dormitories;
• Special security and confidential occasions (confidential office, negotiation room, mobile vehicles, mobile political and business dignitaries guarding the scene;
• All kinds of military sites and other prohibited places to use mobile phones.
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
