Drone Signal Jammer 350W Waterproof Fan Cooled Rack Enclosure With Casters Durable
Basic Info.
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | UAV Drone Jammer |
| Channel Number | 10 |
| Each Bands Power | 3W |
| Total Output Power | 30W |
| Jamming Range | 2-45m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Product Description:

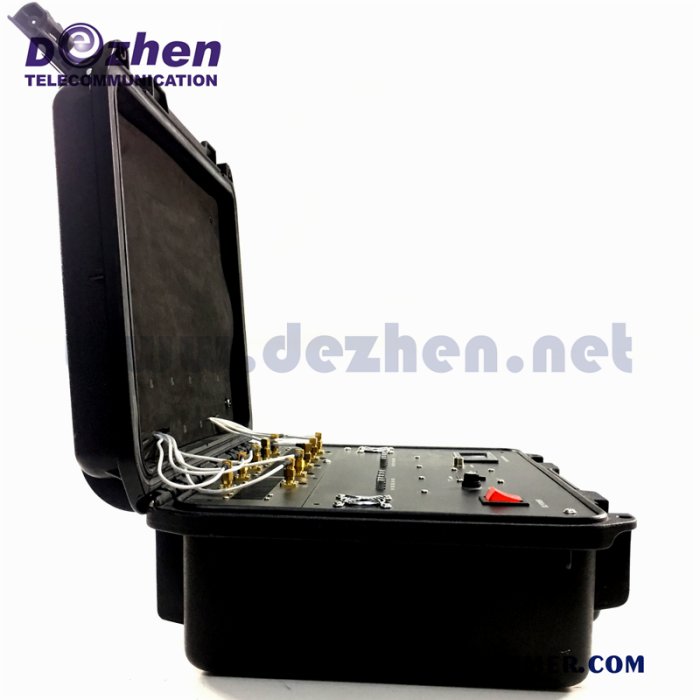

This Drone Signal jammer Shield is a versatile signal blocker that can be installed indoor or outdoors because its enclosure is waterproof, with a built-in fan and a good cooling system.All the frequency that can be customized.
The output power of each channel is 10-30W, and the total output power is 350W.
The shielding range can be Up to 1500 meters, and its configuration antenna can also be selected according to your needs.
There are two types of antennas. One is a directional antenna.
The coverage of this type of antenna is relatively long, and the signal can be covered for the orientation you need, rather than covering the signal centered on a certain point.
Another type of antenna is a fiberglass omnidirectional antenna that radiates a signal outward at a certain point. The range in which the gain of the antenna is also different is also different.
These are all you can customize as needed. Please contact us if you need it.
Applicable place:
Any sensitive locations where the drones/UAVs are not allowed to use, like Government, Oilfield, Homeland Security, Large Gathering Place, Counter-terrorism, Army Security, Airport Security, Petrochemical Industry, Sports Venues, VIP Convoy Protection, Schools and Universities etc.
Features:
LED display battery capactity and Voltage
Frequency bands and output power selectable.
Integrated main equipment, battery, and antennas increases mobility of the device;
Different frequency bands can be controlled independently by different switches;
AC or DC power supply can be selected;
Power Amplifiers protection design ensures the working reliabity of the device.
Specifications
| Output Interface | Output Frequency |
| CH1 | 2.4G: 2400-2500MHz |
| CH2 | 5.8G: 5725-5850MHz |
| CH3 | GPSL1: 1560-1620MHz |
| CH4 | 868-920: 868-916MHz |
| CH5 | WiFi3.6G: 3500-3600MHz |
| CH6 | 433: 433 MHz |
| Jamming range: | 50-2000m(under Signal level ≤-85dBm)@according to the signal density mobile network |
| HS Code: | 8543709200 |
| Dimensions Of Device: | 530 x 300x 200mm not include antennas |
| Weight Of Product: | 25kg |
| Type: | Drone jammer |
| Total output power: | 350W |
| Packing: | Neutral Packing |
| Signal Jammer for: | 350W 6 bands High Power Drone jammer |
| Power Supply: | AC adapter (50 to 60Hz/100 to 240V AC -DC27V) |
| Antenna Type: | Directional Antenna or Omini-directional antenna |
| Operating Temp : | -20 to +50ºC |
| Storage Temp: | -40 to +60ºC |
| Humidity : | 5%-80% |
We could supply customized service by your detail requirements about frequencies setting. All 6 Frequency modules we can mix very flexibly.
| CDMA 800: | 851-894MHz |
| GSM 900: | 925-960MHz |
| DCS 1800: | 1800-1880MHz |
| PHS 1900: | 1920-1990MHz |
| 3G 2100(UMTS): | 2110-2170MHz |
| WIFI 2.4G Bluetooth: | 2400-2500MHz |
| WiFi3.6G: | 3500-3600MHz |
| Wi-Fi5.2G: | 5100-5500MHz |
| WIFI 5.8G | 5725-5850MHz |
| 4G/LTE 700M: | 725-770MHz(US) |
| 4G/LTE 800M: | 790-826MHz(EU) |
| 4G Wimax: | 2300-2400MHz(US) |
| 4G Wimax: | 2620-2690MHz(EU) |
| GPS/L1: | 1500-1600MHz |
| GPS/L2: | 1200-1300MHz |
| GPS/L3: | 1300-1400MHz |
| GPS/L4: | 1100-1200MHz |
| VHF: | 135-174MHz |
| UHF: | 400-470MHz |
| Lojack: | 167-175MHz |
| RF315: | 315MHz |
| RF433: | 433MHz |
| RF868: | 868MHz |
Package contents:
- 1 pc One main jammer unit
- 6 pcs Directional Antennas 90 Degree
- 1 pc Antennas frame with 1.5m cable
- 1 pc Power cord
- 1 pc Wireless OFF/ON remote controller 315MHz
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
