Waterproof GSM WIFI CDMA 500m 400 Watt Vehicle Bomb Jammer
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Vehicle Bomb Jammer |
| Channel Number | 8 |
| Each Bands Power | 50W |
| Total Output Power | 400W |
| Jamming Range | 15-100m |
| Application |
Military Units, Prison, Police, Bomb Disposal |
Vehicle Jammer, Cell Phone Jammer, All-in-One Full frequency Signal Jammer, Bomb Jammer
Product description:

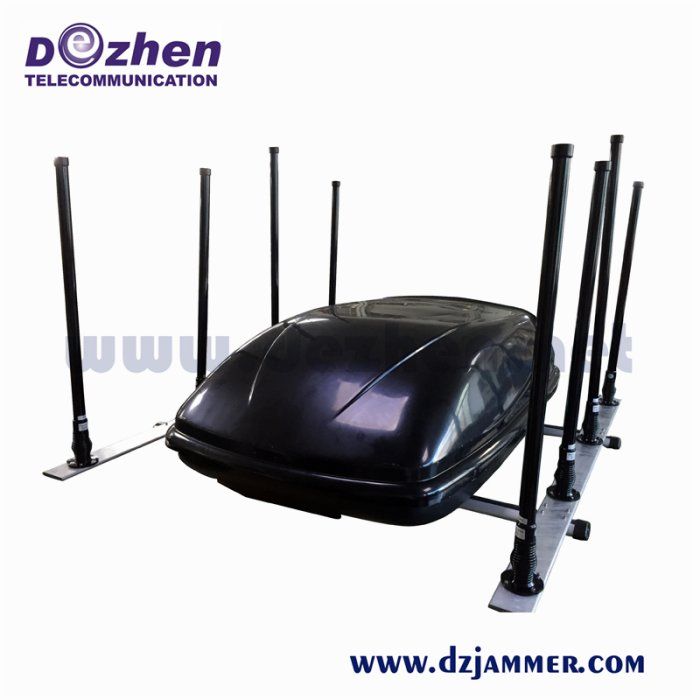

The Vehicle Bomb jammer is a fully portable multi-band Jamming system, and designed with a ruggedized trolley type case for high mobility.
This device is configured more than 10 different jamming modules, and the jamming frequency can be more than 20Bands. Eight jamming frequency modules provide up to 400 Watt output power maximum.
The Bomb jammer is very easily installed and operated. The device can be powered by AC mains or a suitable DC power source. The general design of the system meets military requirements and international quality standards.
Specification:
Working frequency (8 bands):
|
Output Interface |
Output Frequency |
RF Output watt |
|
CH1 |
CDMA/GSM: 851-960MHz |
50W |
|
CH2 |
DCS/PCS: 1805-1990MHz |
50W |
|
CH3 |
3G:2110-2170MHz |
50W |
|
CH4 |
4G LTE: (USA:725-770MHz) or (Europe:790-826MHz) |
50W |
|
CH5 |
4G Wimax: (USA:2345-2400MHz) or (Europe:2620-2690MHz) |
50W |
|
CH6 |
Wifi or Bluetooth |
50W |
|
CH7 |
GPS:1570-1580MHz |
50W |
|
CH8 |
WIFI2.4G:2400-2500MHz |
50W |
|
Total RF Power |
400 Watt. |
|
|
Power supply |
AC220V |
|
|
Shielding area |
300 to 500m ( signal strength <=75dbm.) |
|
|
Jammer Module Number |
8 |
|
|
Cooling System |
Systematic Smart Cooling System |
|
|
System Protection |
VSWR, Over-voltage, Over-current |
|
|
Housing: |
Waterproof & shockproof design suitable indoor or outdoor use |
|
|
Remote Control (Option) |
Each band can work independently |
|
|
Antenna Type |
8pcs External (2-3dBi) omnidirectional (Standard) |
|
|
Number of Antennas |
8 |
|
|
Vehicle Platform(Option) |
Off-road four-wheel drive car |
|
|
Weight: |
Approx 60 kg (with omnidirectional antenna.) |
|
|
Size (length × wind × high) |
56*46*27 cm |
|
|
Humidity |
Up to 80% |
|
|
Running Temperature |
-20 ...+50 Centigrade degree |
|
Accessorises:
Power cable
Antennas
User manual
Product Notes
Make sure to connect all the antennas firstly before the power supply is switched on. Please do not take off antenna when the machine is working.
Antenna shall be used vertically to the ground for working more efficiently.
Please don't put the jammer in the bad Condition of over-wet, over-hot, high voltage and high magnetism.
The jammer shall be installed in the position with good ventilation, and large-scale things shall be avoided to ensure the shielding effect.
Terms and conditions:
| Delivery Time Schedule | Delivery time is 1 or 2 months, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
Monitor software function: (Option)
· Remote control switches of each machine.
· Remote viewing each machine working state.
· The power output of each machine remote adjustment.
· Remote viewing offline log of each machine.
· Mail receiving each machine working state.
· The system can set permissions to log on.
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
