Product Description
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | UAV Drone Jammer |
| Channel Number | 3 |
| Each Bands Power | 10W |
| Total Output Power | 30W |
| Jamming Range | 20-50m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Product Description

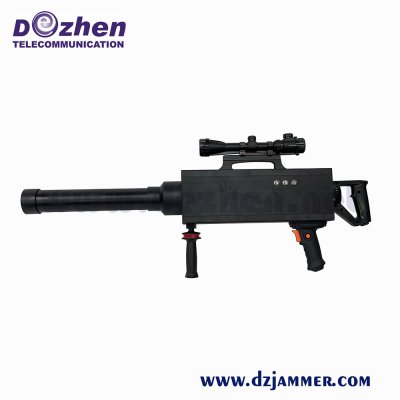

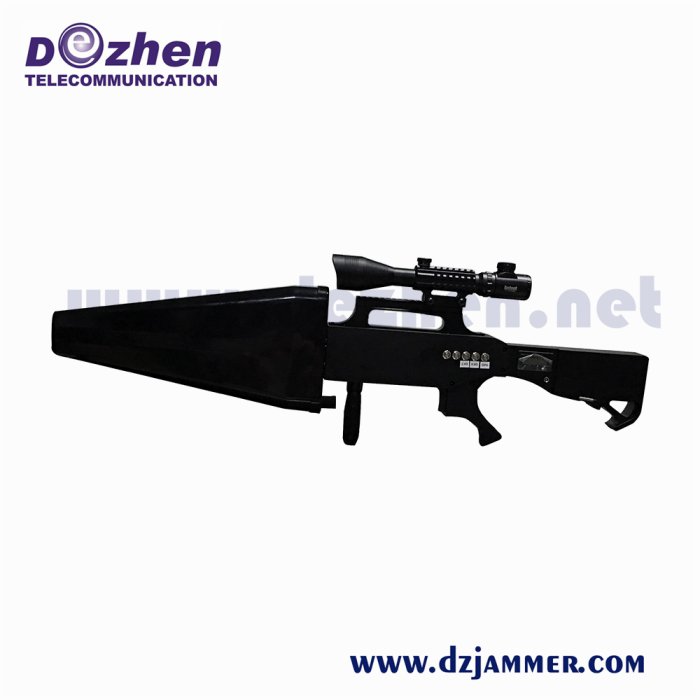

The portable drone jammer is our company's latest product designed by R&D department,the drone jammer disables the targeted drones by remote-control signal and GPS signal, to force the drone fall or return.
Effective interference with UAV's Remote-Control Signal 2400MHz, GPS signal 1500MHz,Remote-Control Signal and Image Transmission Signal 5800MHz.
Advantages and Features:
1.Outdoor waterproof case with protection level of IP55
2.UHF broadband jamming technology: highly effective power & long jamming distance
3.Separate control of each module, convenient operation.
4.High quality tubular radiator, effective in radiating heat.
5.High integration components; the moderating circuit-starting design avoids a spark when the device turns on/off. High integration & Stable operation.
6.Batteries are separate from the main device,easy to be replaced and maintained.
Applications:
Mainly applied to prisons, airports, scientific research centers, detention houses,interrogation rooms, courthouses, labor camp,all kinds of military important places, etc.
that forbid aerial photography by use of UAVs
Technique characteristics:
1.Taking use of super-high frequency with high effective power.
2.Effective output power (channel power) and bigger interfere radius.
3.Only interfere downlink frequency of mobile system,without disturb normally working of Base Stations.
4.Imported elements: Slow start up design of circuit. These elements can maintain the stable operation condition with high integration.
Specifications:
| Output Interface | Shield band of frequency (MHz) | RF Output Power(±1dBm) |
| CH1 | 2.4G | 40 dBm |
| CH2 | GPS L1 | 40 dBm |
| CH3 | 5.8G | 37 dBm |
| Power supply: | AC110~220V/DC-48V (option) | |
| Total RF Power : | 30W | |
| Built-in battery: | DC-24V 8AH/Support 120min Full Power Working (option). | |
| Field strength at -80dBm, Shielding area: | 500 ~ 1000m @ according to signal density of mobile network. | |
| Power consumption: | 90W | |
| Weight: | 6.0Kg | |
| Size(length × wind × high): | 960×400×230 mm | |
| Humidity: | 30%-95% | |
| Running Temperature: | -10 to +55 Celsius Degree | |
| Packing: | Box | |
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year :5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
