Basic Info.
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Portable Jammer |
| Channel Number | 5 |
| Each Bands Power | 60W |
| Total Output Power | 320W |
| Jamming Range | 2-90m |
| Application | Military Units, Prison, Police, Bomb Disposal |

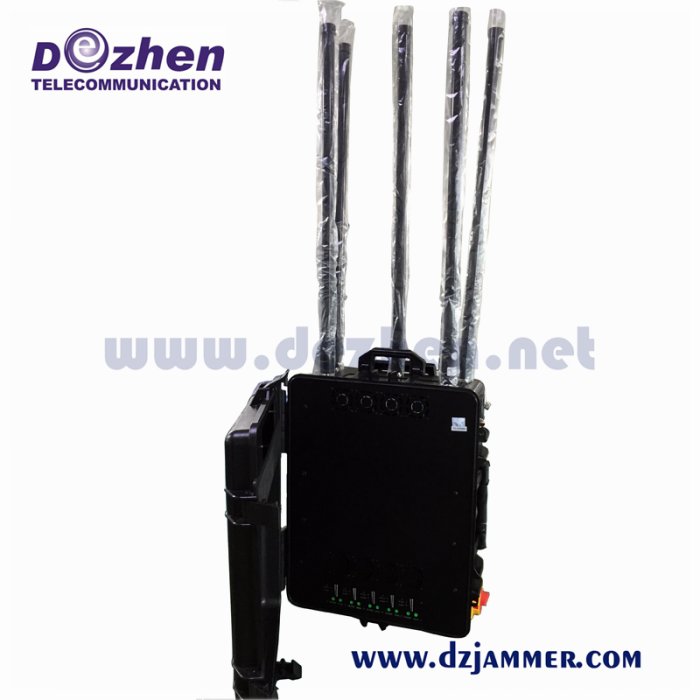

250 watt High Power portable mobile jammer device for patrol and anti terrorist
Description:
This is a portable type mobile phone signal shielding device .
It is easy to carry, flexible to use, also with optional built-in high capacity battery , so it especially suitable for application in: large venue, infantry troop and military security force, the SWAT team, counter-terrorism unit, the drug control unit, explosion-proof, EOD team, checkpoint, the hostage negotiation, and border control, etc.
Functional characteristics:
1. High RF power, shielding all 2G, 3G, 4G signals, frequencies can be customized by customers.
2. it can with multiple power supplies :if with built-in battery, it can provide power for the jammer working about 2 hours. Also it can be powered by 220V AC or an on-board power supply.
3. Efficient cooling heat dissipation system ,including high performance aluminum alloy heat sink and several wind fans, so the jammer can non-stopped work for long time.
4. this jammer can be customized as 4 0r 5 or 6 bands ,and each band could be 50 watts or 100watts as customer’s request.
Specifications:
|
Output interface |
Shield band of frequency |
RF output power |
Output power/channel |
|
CH1 |
851-894 MHz |
46 dBm |
17 dBm/30KHz(min) |
|
CH2 |
1805-1880 MHz |
46 dBm |
14 dBm/30KHz(min) |
|
CH3 |
2110-2170 MHz |
46 dBm |
15.5 dBm/30KHz(min) |
|
CH4 |
2100-2170 MHZ |
46 dBm |
15.5 dBm/30KHz(min) |
|
CH5 |
925-960 MHz |
46 dBm |
17.5 dBm/30KHz(min) |
|
Power supply: AC110-220V Shielding area: 30-500M @ according to signal density of mobile network |
|||
|
Power consumption: 720W Weight:22Kg Size(length × wind × high):390×390×240mm |
|||
|
Humidity: 30%-95% Running Temperature: -20 to +55 Celsius Degree |
|||
Competitive Advantage:
- Easy of mobility, can be carried like a trolley.
- High Power RF amplifiers with VSWR and temperature self-protection technology.
- with good cooling system, can operate for long time.
- Using digital interference technology, overall effective suppression of target spectrum
- independent module design. Each module can separate switch,disassemble. So it is convenient for maintenance and update.
- Perfect Alarm System, fully protected circuit in case of disconnection of antennas.
Applications:
large venue, infantry troop and military security force, the SWAT team, counter-terrorism unit, the drug control unit, explosion-proof, EOD team, checkpoint, the hostage negotiation, and border control, etc.
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year :5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
