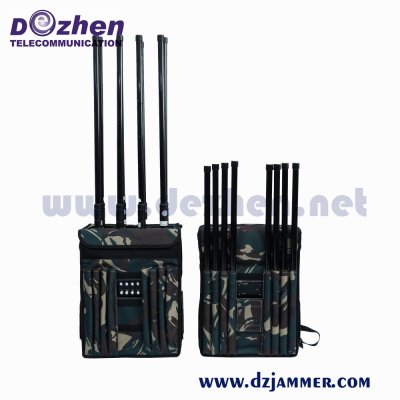

VIP Protection Security High Power Signal Jammer GPS WIFI Cell Phone Signal Backpack Jammer
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | BackPack Jammer |
| Channel Number | 4 |
| Each Bands Power | 20W |
| Total Output Power | 80W |
| Jamming Range | 2-90m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Key Specifications/ Special Features:
Product Description:
1,High Power Freqeuncy Scan Convoy Jamming System, implementing the most effective and reliable RF jammer technology and equipped with a fully-integrated broadband jamming system. This is highly portable and light weight. Easy for backpack.
2,It plays an important role to use the heavily loaded vehicle and backpack type devices in some extreme hard situation.The operator can carry it forward through the hills and muddy road, as well as Climbing steep mounts and stairs avoid casualties and improve the combat efficiency.
3,This is full manpack multi band Jamming system is designed with a ruggedized case, light weight, highly mobility and reliance. This device is configured with 6 different jamming modules, the jamming frequency can be more than 8 Bands.
4,It is especially easy to install and operate: simply attach the selected antennas and activate the desired frequency bands. The general design of the system meets military requirements as well as international quality standards and requirements. Our industrial in-house quality management system guarantees highest quality standards in terms of performance, reliable and long-life cycles.
5,Based on our general design, we can further customize our systems to client-specified scenarios both for military and civil applications in order to provide the best individual solution.
Features:
1. High-power Manpack multi-band RF signal jammer.
2. Modular construction for easy maintenance, repair and upgrade.
3. Jam up to four different jamming modules.
4. Max 220 watt total RF output power.
5. High portable, back pack type.
6. Internal battery, AC mains or DC power.
7. External LCD display to indicate the battery level.
8. Systematic Smart Cooling System.
9. The general design of the system meets military requirements.
|
Output Interface |
Output Frequency |
|
CH1 |
-WIFI2.4G: 2400-2500MHz |
|
CH2 |
-GPS L2-L5:1100-1300MHz |
|
CH3 |
-GSM : 850-920MHz |
|
CH4 |
-4G Wimax: 2620-2690MHz |
|
Jammed Signal Freqency: |
CDMA,GSM,2.4G WIFI,5.8G WIFI,GPS L1,GPS L2-L5,VHF,UHF.... |
|
Type: |
Backpack jammer |
|
Output Channel: |
4 output channels |
|
Output power: |
80 watt |
|
Parameter Shielding Range: |
Radius 5-200 meters (-75dBm,depending on the distance of base station in an open filed) |
|
Jammer Module Number: |
4 |
|
HS Code: |
8543709200 |
|
Packing: |
Box |
|
Dimension (not including antennae): |
30 *45 *15cm |
|
Antenna: |
Omnil Antenna |
|
Technical Parameters: |
|
|
Net Weight |
12KG |
|
Total Weight |
13KG |
|
Ambient Temperature |
-10ºC - +50ºC |
|
Relative Humidity |
≤80% |
|
Power Consumption |
≤220W |
|
Power Input |
AC100~240V,DC24V |
|
Battery |
24V,30AH,Built-in standby battery can used for 90~180 minutes |
|
Antenna Parameters |
Omni antennas,gain:4~5dBi |
|
Switch Control |
Manually |
|
Equipment Chassis |
Metallic Paint |
|
Cooling system |
Active "smart" with integrated incoming air filter |
|
Antennae type |
External high gain Omni directional Antenna |
Application:
Built-in high capacity battery and portable backpack design make this jammer applicable to meeting halls,infantry,military security force,SWAT team,bomb squad,anti-terrorism units,anti-drag units,anti-riot force,the EOD team,checkpoints,hostage negotiations,border control,etc...
|
|||||||||||||||
R&D Group in USA
We have strong and excellent R&D group in USA, who dedicated to the research and development of our new products.We are consumer-oriented and do our best to offer satisfying products to customers.
Manufacturer in CHINA
A full line of products - We have a full line of cellular jamming products from low-cost portable units to high-spec industrial units.
We are the specialists in cell phone Jammers and GPS Jammer, WIFI Jammer, 3G Jammer, 4G Jammer, Lojack Jammer, UHF/VHF Jammer, RF Jammer, Audio Jammer,Wireless Video Jammer and signal Repeater/Amplifier/Booster etc.We offer unparalleled professional service and advice for our personal and commercial products. 10+ years of industry experience makes us the specialists you can trust. We pioneered all kind of jammers online sales, and offer the best cellular jamming prices worldwide - guaranteed. We are a developer, manufacturer and reseller of cell phone jamming devices and signal Repeater devices. products include GSM Jammer, CDMA jammer, DCS/PCS Jammer, GPS Jammer, WIFI Jammer, 3G Jammer, Audio Jammer, Wireless Video Jammer, Dual Band Repeater,Tri Band Repeater etc.
Our Jammer type have Portable Jammers, Desktop Jammer, Prison Jamme, Vehicular jammer, Bomb Jammer, IED Jammer and RF Jammer.
