Product description:
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | BackPack Jammer |
| Channel Number | 6 |
| Each Bands Power | 40W |
| Total Output Power | 240W |
| Jamming Range | 2-100m |
| Application | Military Units, Prison, Police, Bomb Disposal |

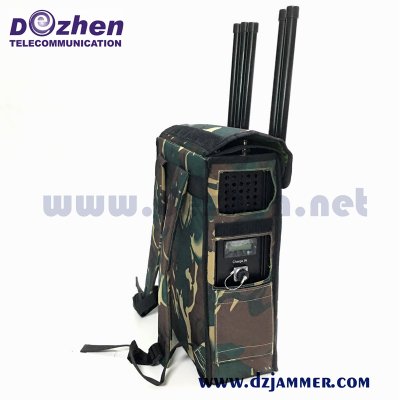

Military VIP Protection Security High Power Backpack Cell Phone Signal Jammer
Product Description:
High Power Frequency Scan Convoy Jamming System, implementing the most effective and reliable
RF jammer technology and equipped with a fully-integrated broadband jamming system; Highly portable and light weight.
The system use Broadband Omni-Directional antennas for 360 degree protection.

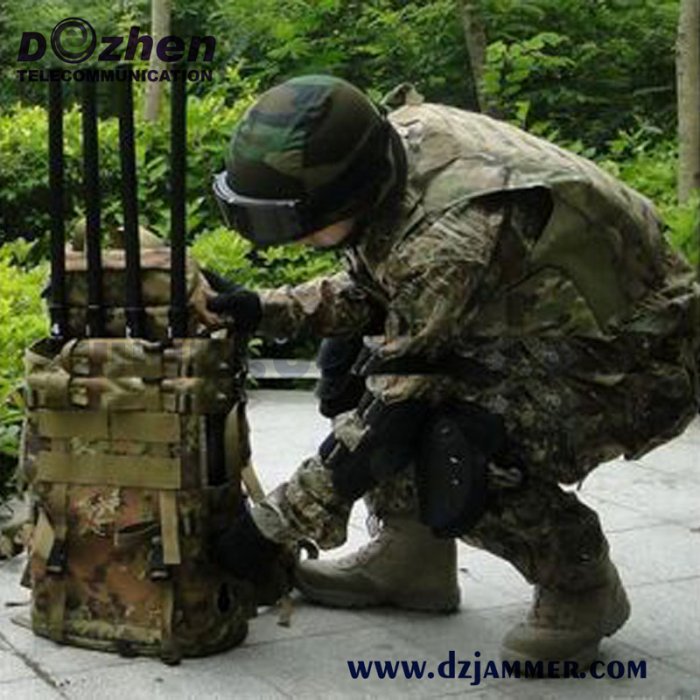

It is a man-portable system that will provide durable reliability for law enforcement and military forces in the field.
It can also be placed in a vehicle for greater mobility when securing areas against RCIEDs.
Features:
Each frequency band controlled by independent RF ON/OFF switches.
Power of each frequency band can be adjustable independently.
Aluminum-alloy casing with high protection has high resistance to dust, water and corroding.
Heat sink designing combing with the fans to make system in a cooling status
Special technology to prevent interference between each frequency band.
Only interfere downlink frequency of mobile system, without disturb normally working of Base Stations.
Frequency bands and output power selectable.
Specifications:
| Output Interface | Output Frequency |
| CH1 | -CDMA: 851-960MHz /-GSM: 925-960MHz |
| CH2 | -DCS: 1805-1880MHz |
| CH3 | -PCS: 192-1990MHz |
| CH4 | -3G: 2110-2170MHz |
| CH5 | -4G Wimax: 2300-2400MHz(US) or 2620-2690MHz(EU) |
| CH6 | -4G LTE: 725-770MHz(US) or 790-826MHz(EU) |
| Jammed Signal Freqency: | CDMA,GSM,2.4G WIFI,5.8G WIFI,GPS L1,GPS L2-L5,VHF,UHF.... |
| Type: | Backpack jammer |
| Output Channel: | 6 output channels |
| Power Consumption: | Max: 220W |
| Output power: | 80watt |
| Parameter Shielding Range: | Radius 50-150 meters (-75dBm,depending on the distance of base station in an open filed) |
| Jammer Module Number | 6 |
| HS Code: | 8543709200 |
| Packing: | Box |
| Dimension (not including antennae): | 30 *45 *15cm |
| Technical Parameters: | |
| Net Weight | 20kg |
| Total Weight | 25kg Aviation Case included |
| Ambient Temperature | -10ºC - +50ºC |
| Relative Humidity | ≤80% |
| Power Consumption | ≤360W |
| Power Input | AC100~240V,DC24V |
| Battery | 24V,30AH,Built-in standby battery can used for 90~180 minutes |
| Antenna Parameters | Omni antennas,gain:4~5dBi |
| Switch Control | Manually |
| Equipment Chassis | Metallic Paint |
| Cooling system | Active "smart" with integrated incoming air filter |
| Antennae type: | External high gain Omni directional Antenna |
We could supply customized service by your detail requirements about frequencies setting.
4-8 Frequency modules we can mix very flexibly.Frequency Ranges Selectable:
| CDMA 800: | 851-894MHz |
| GSM 900: | 925-960MHz |
| DCS 1800: | 1800-1880MHz |
| PHS 1900: | 1920-1990MHz |
| 3G 2100(UMTS): | 2110-2170MHz |
| WIFI 2.4G Bluetooth: | 2400-2500MHz |
| WiFi3.6G: | 3500-3600MHz |
| Wi-Fi5.2G: | 5100-5500MHz |
| WIFI 5.8G | 5725-5850MHz |
| 4G/LTE 700M: | 725-770MHz(US) |
| 4G/LTE 800M: | 790-826MHz(EU) |
| 4G Wimax: | 2300-2400MHz(US) |
| 4G Wimax: | 2620-2690MHz(EU) |
| GPS/L1: | 1500-1600MHz |
| GPS/L2: | 1200-1300MHz |
| GPS/L3: | 1300-1400MHz |
| GPS/L4: | 1100-1200MHz |
| VHF: | 135-174MHz |
| UHF: | 400-470MHz |
| Lojack: | 167-175MHz |
| RF315: | 315MHz |
| RF433: | 433MHz |
| RF868: | 868MHz |
