Product description:
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | BackPack Jammer |
| Channel Number | 6 |
| Each Bands Power | 30W |
| Total Output Power | 180W |
| Jamming Range | 2-100m |
| Application | Military Units, Prison, Police, Bomb Disposal |

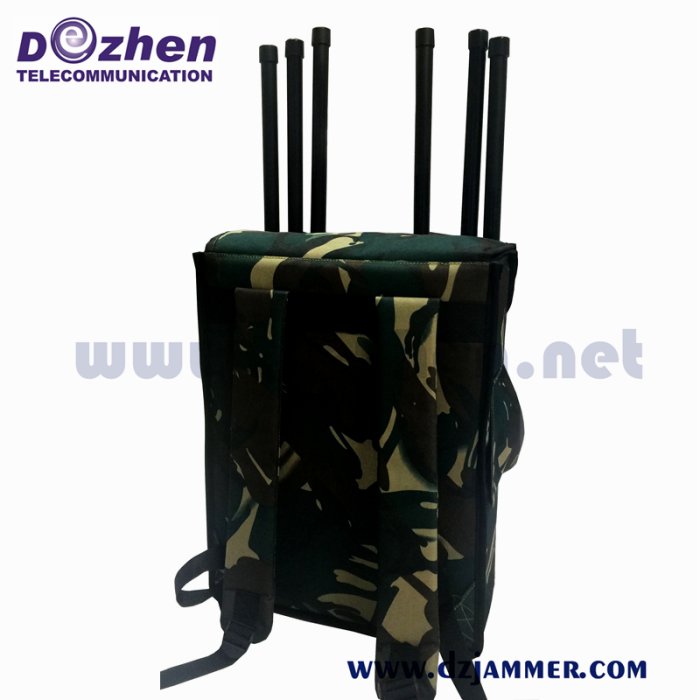

Durable VIP Protection Security Backpack Jammer High Power GPS Cell Phone Signal Jammer
Product Description:
The backpack jammer can plays an important role to use the heavily loaded vehicle and backpack type devices in some extreme hard situation.The operator can carry it forward through the hills and muddy road, as well as Climbing steep mounts and stairs avoid casualties and improve the combat efficiency.
Features:
1. High portable, back pack type.
2. Internal battery, AC mains or DC power.
3. External LCD display to indicate the battery level.
4. Systematic Smart Cooling System.
5. The general design of the system meets military requirements.
Specifications:
| Output Interface | Output Frequency |
| CH1 | -CDMA: 851-960MHz /-GSM: 925-960MHz |
| CH2 | -DCS: 1805-1880MHz |
| CH3 | -PCS: 192-1990MHz |
| CH4 | -3G: 2110-2170MHz |
| CH5 | -4G Wimax: 2300-2400MHz(US) or 2620-2690MHz(EU) |
| CH6 | -4G LTE: 725-770MHz(US) or 790-826MHz(EU) |
| Jammed Signal Freqency: | CDMA,GSM,2.4G WIFI,5.8G WIFI,GPS L1,GPS L2-L5,VHF,UHF.... |
| Type: | Backpack jammer |
| Output Channel: | 6 output channels |
| Power Consumption: | Max: 220W |
| Output power: | 180watt |
| Parameter Shielding Range: | Radius 50-150 meters (-75dBm,depending on the distance of base station in an open filed) |
| Jammer Module Number | 6 |
| HS Code: | 8543709200 |
| Packing: | Box |
|
Dimension (not including antennae): |
30 *45 *15cm |
| Technical Parameters: | |
| Net Weight | 20kg |
| Total Weight | 25kg Aviation Case included |
| Ambient Temperature | -10ºC - +50ºC |
| Relative Humidity | ≤80% |
| Power Consumption | ≤360W |
| Power Input | AC100~240V,DC24V |
| Battery | 24V,30AH,Built-in standby battery can used for 90~180 minutes |
| Antenna Parameters | Omni antennas,gain:4~5dBi |
| Switch Control | Manually |
| Equipment Chassis | Metallic Paint |
| Cooling system | Active "smart" with integrated incoming air filter |
| Antennae type: | External high gain Omni directional Antenna |
4-8 Frequency modules we can mix very flexibly.Frequency Ranges Selectable:
| CDMA 800: | 851-894MHz |
| GSM 900: | 925-960MHz |
| DCS 1800: | 1800-1880MHz |
| PHS 1900: | 1920-1990MHz |
| 3G 2100(UMTS): | 2110-2170MHz |
| WIFI 2.4G Bluetooth: | 2400-2500MHz |
| WiFi3.6G: | 3500-3600MHz |
| Wi-Fi5.2G: | 5100-5500MHz |
| WIFI 5.8G | 5725-5850MHz |
| 4G/LTE 700M: | 725-770MHz(US) |
| 4G/LTE 800M: | 790-826MHz(EU) |
| 4G Wimax: | 2300-2400MHz(US) |
| 4G Wimax: | 2620-2690MHz(EU) |
| GPS/L1: | 1500-1600MHz |
| GPS/L2: | 1200-1300MHz |
| GPS/L3: | 1300-1400MHz |
| GPS/L4: | 1100-1200MHz |
| VHF: | 135-174MHz |
| UHF: | 400-470MHz |
| Lojack: | 167-175MHz |
| RF315: | 315MHz |
| RF433: | 433MHz |
| RF868: | 868MHz |
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year :5% of total for each years. |
Application:
Built-in high capacity battery and portable backpack design make this jammer applicable to meeting halls,infantry,military security force,SWAT team,bomb squad,anti-terrorism units,anti-drag units,anti-riot force,the EOD team,checkpoints,hostage negotiations,border control,etc...
.image.400x400.jpg "GSM WiFi 2.4G 3G 4G 5G GPS Cell Phone Jammer 4 bands Customize Frequency Backpack Ied")

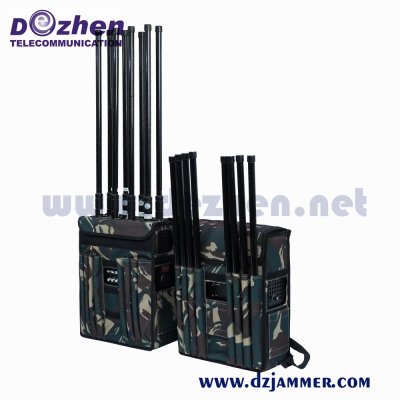

.image.400x400.jpg "GPS WIFI 5.8G Waterproof Backpack UAV Jammer 8 bands Omni Antenna")
